C.H.I. Commercial Folding Grilles and Closures: 9100
9100 Side Folding Grilles and Closures
FEATURES
- Side folding grilles and closures have the ability to fill irregular openings
- Open rod and link designs provide high visibility and airflow at a reasonable cost
- Glass closures showcase the materials behind the closure for a true after-hours window-shopping experience
- Virtually no width restrictions: curtains can be even hundreds of feet (almost a hundred meters) wide
- Operation: manual operation moves the curtain through some of the most creative layouts easily, saving the costs of motors and electrical hook up
- When fully-opened, our side-folding doors have the smallest stacking sizes in the industry
Offering the most resourceful way to secure an opening for almost any application, the 9100 Series side folding grilles and closures are designed in a variety of configurations to complement surrounding architecture and allow for greater flexibility. The 9100 series steel roll-up doors also allow for flexibility with narrow and wide body panels, changing the stack depth required and increasing design options.
Curtain
Choose from a variety of options including:
- Rod Link
- Glass
- Polycarbonate
- Perforated
- Solid (Truss-Like Aluminum)
- Clear
- Champagne
- Light Bronze
- Bronze
- Black
Resources
View Design OptionsLayout
Side folding doors are stored (stacked) in a pocket or at the sides of the opening when in the full open position. Determining what layout to use depends on space limitations, type of closure and how you want the door to operate. When panels are stored they are referred to as a stack.
A variety of layouts are available for side-folding doors, including straight spans, stack arrangements, curves and special radius.
Resources
9100 Layout
Mounting Options
Tracks are mounted to structural elements of the building. In addition to standard mounting options, below are two special mounting options.
Masonry Ceiling Mount
- Use with strut channel joists
- Drop down threaded rod – braced
- Holds blocking in place

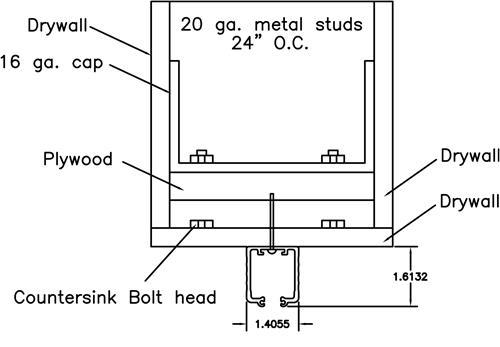

Metal Stud Mount
- Sheet metal not inherently strong enough on own – requires bracing & blocking
- Adding wood blocking eliminates screw vibration in metal stud
Door Options
Emergency Egress:
- Full-size door opens fully in direction of egress. Depending on locality, hardware and door should comply with ICBO and ADA egress requirements. Emergency Egress will add 8 to 10 inches of additional stack.
Special Layout Options:

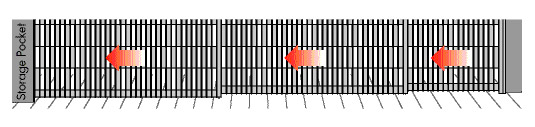

- Side Folding Doors can fill irregular openings to maintain architectural integrity of a space including multi-level counter, sloping floor and more. Contact factory for special layout options.
Specs / Drawings
| Name | Word Doc | |
|---|---|---|
| 9100 Narrow Perforated 3 Part Specification | Doc | |
| 9100 Narrow Solid 3 Part Specification CSI | Doc | |
| 9100 Staggered Standard Rod & Link 3 Part Specification CSI | Doc | |
| 9100 Staggered Wide Rod & Link 3 Part Specification CSI | Doc | |
| 9100 Standard Perforated 3 Part Specification CSI | Doc | |
| 9100 Standard Polycarbonate 3 Part Specification CSI | Doc | |
| 9100 Standard Solid 3 Part Specification CSI | Doc | |
| 9100 Straight Narrow Rod & Link 3 Part Specification CSI | Doc | |
| 9100 Straight Standard Rod & Link 3 Part Specification CSI | Doc | |
| 9100 Standard Crystal 3 Part Specification CSI | Doc | |
| 9100 Straight Wide Rod & Link 3 Part Specification CSI | Doc | |
| 9100 Wide Crystal 3 Part Specification CSI | Doc | |
| 9100 Wide Perforated 3 Part Specification | Doc | |
| 9100 Wide Polycarbonate 3 Part Specification CSI | Doc | |
| 9100 Wide Solid 3 Part Specification CSI | Doc |
